INTERCEPT®
FULL-BODY X-RAY SCANNER FOR
HIGH-SECURITY FACILITIES

Detect Internal and External Contraband in Just 3.8 Seconds

The Intercept® Full-Body X-Ray Scanner helps correctional facilities detect concealed weapons, drugs, cell phones, and other metallic and non-metallic contraband—whether hidden internally or externally—in as little as 3.8 seconds. The Intercept combines patented vertical scanning technology with high-resolution imaging and ultra-low-dose radiation to help officers make faster, more informed security decisions.

Request a Demo Brochure Contact Us Specs FAQs

Built for Modern Correctional Operations

Streamlining Intake and Enhancing Facility Security

Correctional agencies face increasing challenges during inmate intake, facility transfers, and daily security operations. Traditional screening methods can be time-consuming, invasive, and may fail to detect internally concealed life-threatening contraband.

The Intercept was engineered specifically to help correctional professionals improve detection capabilities while maintaining operational efficiency.

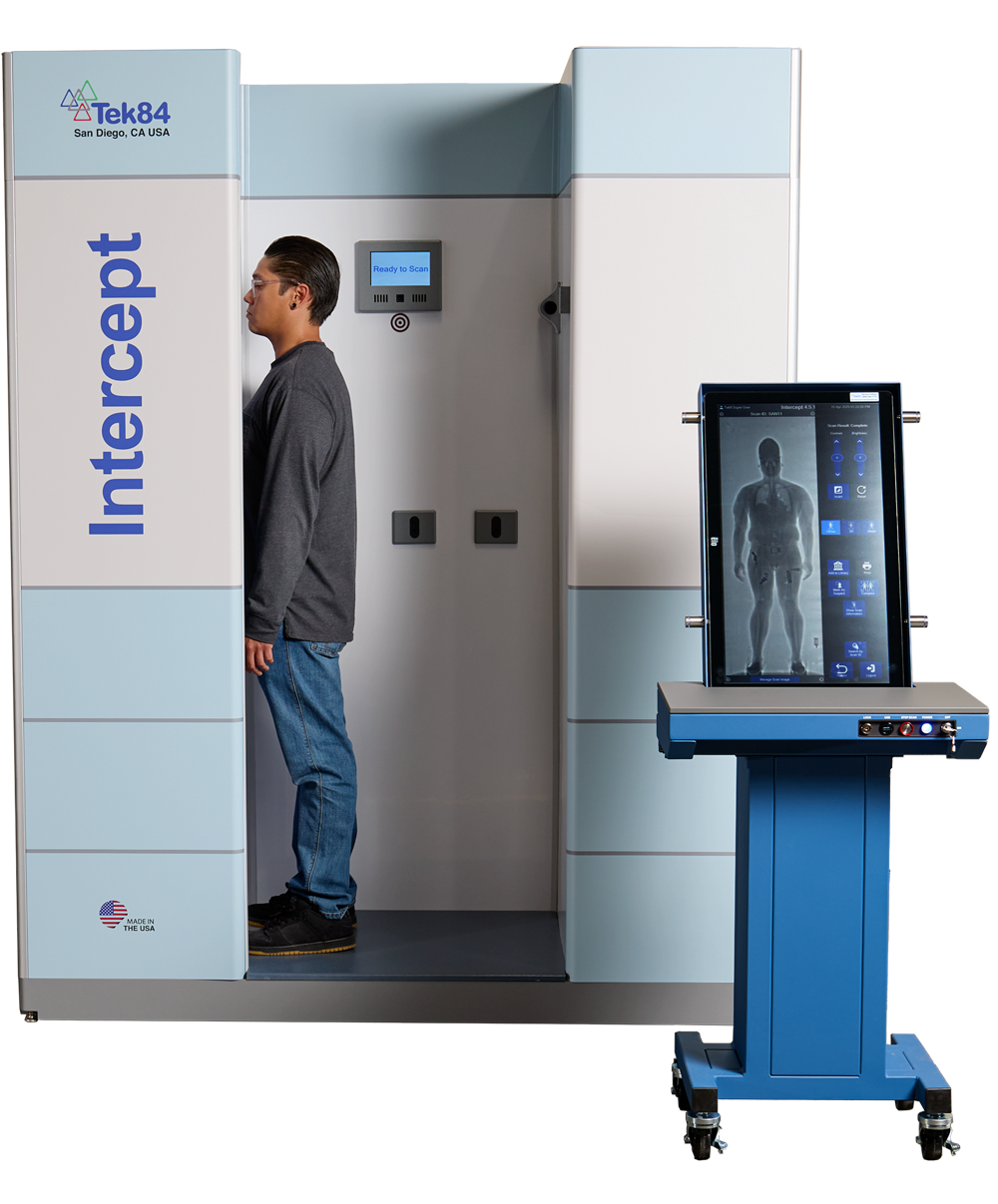

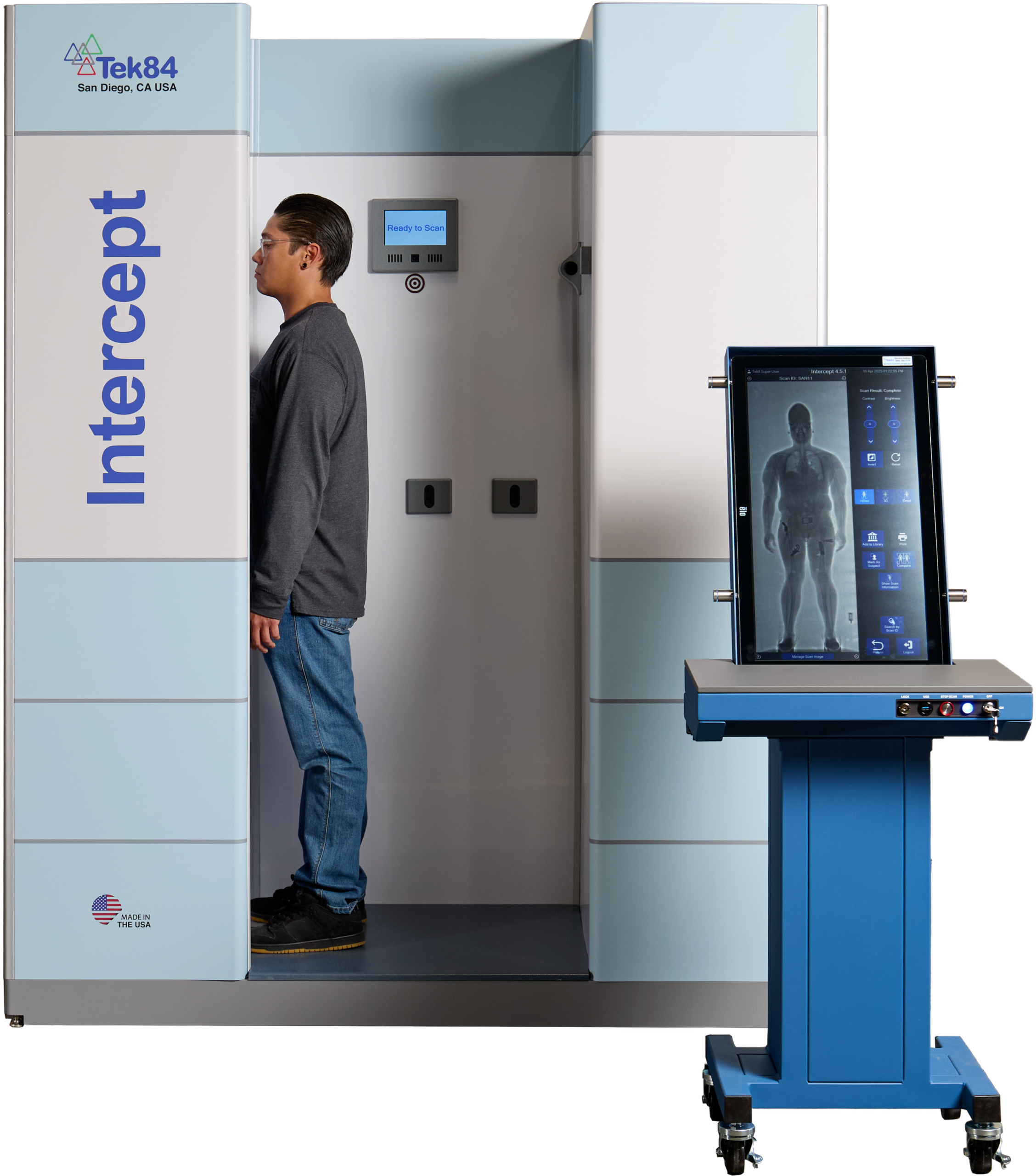

The compact 3-foot by 6-foot scanner installs in approximately two hours, fits through a standard doorway, and integrates easily into existing intake workflows. Unlike conveyor belt systems, Intercept allows the person to stand on a flat non-moving surface while it captures head-to-toe images, helping facilities maintain safe, continuous, and expedited operations.

Detect More. Search Less.

Intercept helps correctional staff identify concealed threats that conventional screening methods may miss.

Detectable Threats Include:

Weapons
Cell phones
Drugs
Metallic & Non-metallic contraband
Organic & Inorganic materials
Internally & Externally concealed items

Fast, non-invasive screening helps facilities:

Improve officer and inmate safety
Reduce unnecessary manual searches
Reduce the need for dry cell status
Increase operational efficiency
Improve confidence during screening

Why Correctional Agencies Choose Intercept

Correctional professionals need more than fast scans—they need confidence in every image.

Intercept delivers:

High-resolution, distortion-free imaging
Rapid 3.8-second screening
Patented vertical scanning technology
Compact 3'x6' footprint

Intuitive user interface
Reliable performance in demanding environments
Quick installation
ANSI N43.17 compliant operation

What Makes Intercept Different?

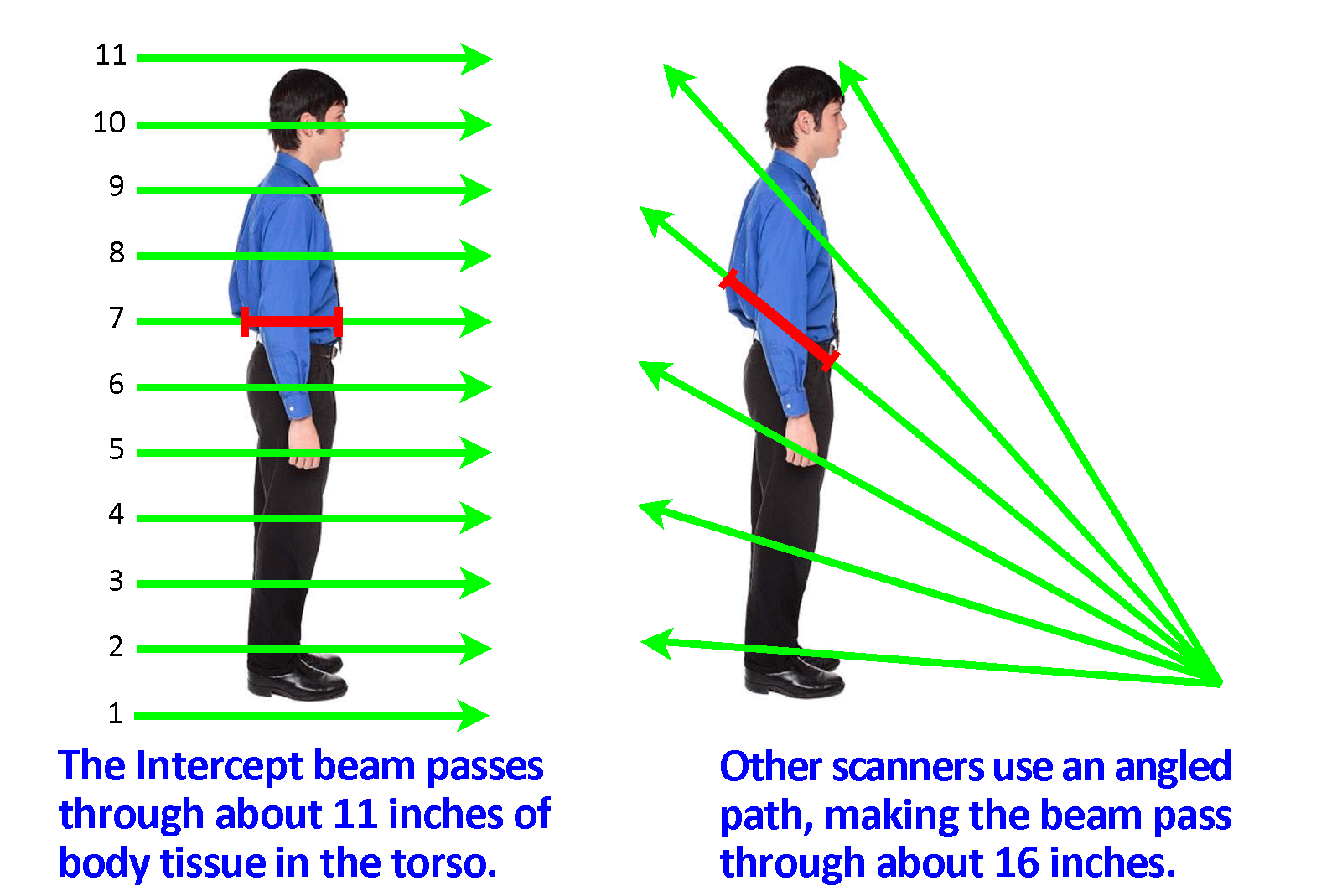

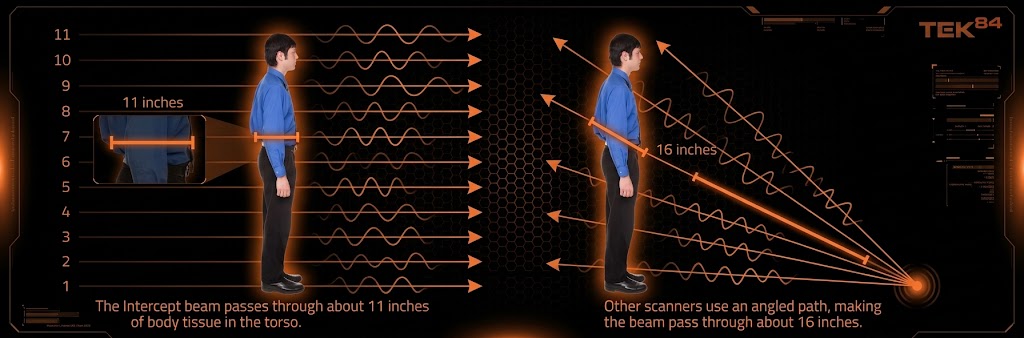

Patented Vertical Scanning Technology

Most conventional body scanners use stationary, fixed-angle x-ray beams that travel diagonally through the body, passing through more tissue and increasing the potential for image distortion.

Intercept® uses patented vertical scanning technology to move the x-ray beam from head to toe, while imaging horizontally across the body’s shortest cross-sectional path. With less tissue for the x-rays to pass through, Intercept produces sharp, distortion-free images using minimal radiation.

The result is clearer imaging, greater confidence for operators, and improved detection performance while maintaining ultra-low radiation exposure.

Advanced Imaging Features

Designed with correctional professionals in mind, Intercept provides intuitive software tools that support efficient screening and accurate image interpretation.

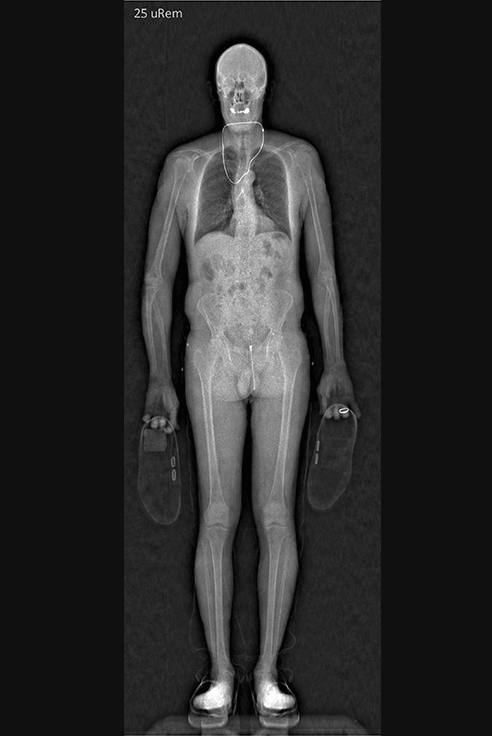

High-resolution imaging
Distortion-free image capture

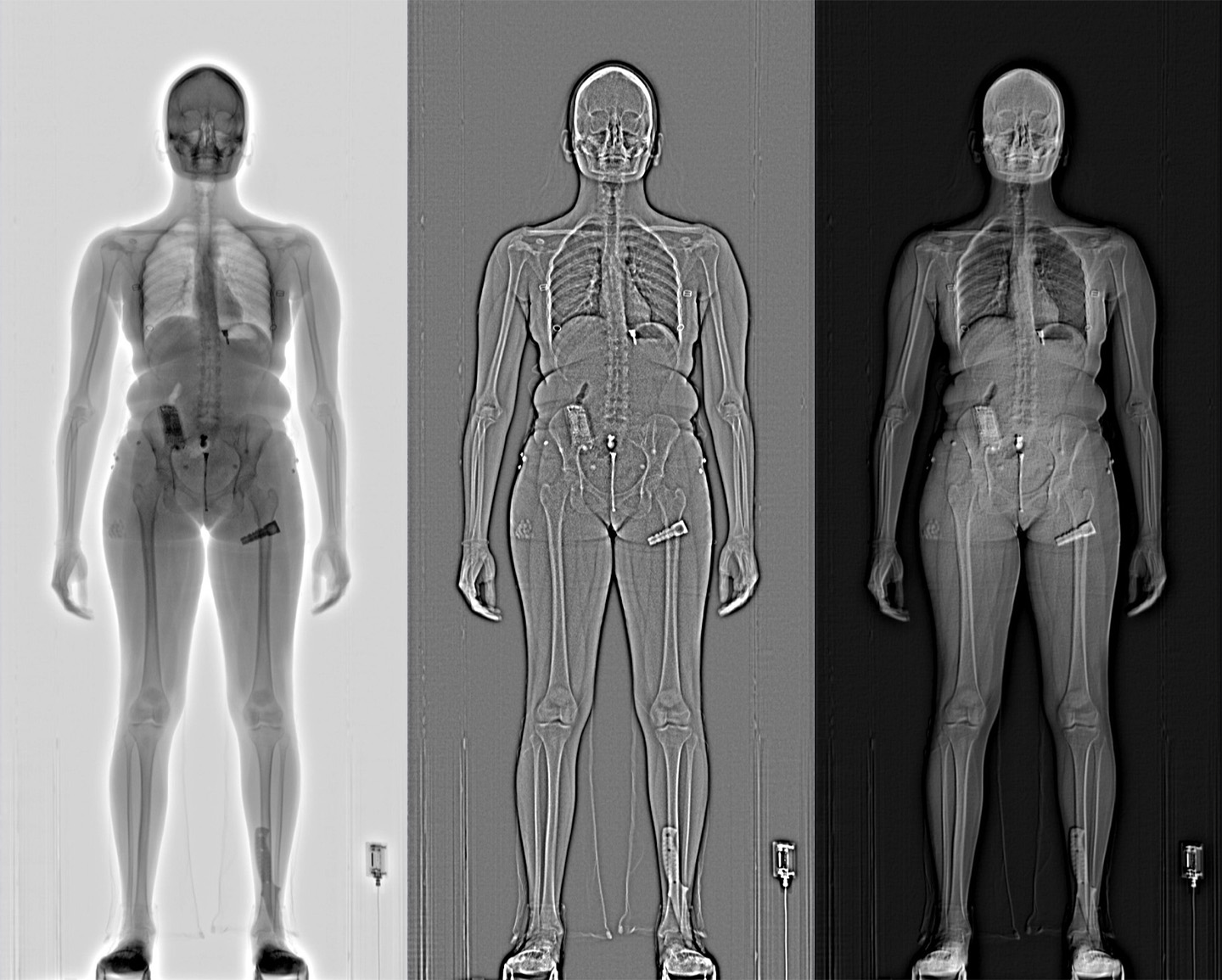

Hi-Res, 3D, and Detail scan filters
Adjustable brightness, contrast, and image inversion
Zoom functionality
Image annotation and classification tools
Integrated photo ID capture
Side-by-side scan comparison

Safe, Low-Dose X-Ray Screening

Officer safety and inmate safety are equally important. Intercept incorporates intelligent features that support safe, compliant screening operations while minimizing radiation exposure.

Safety features include:

Six selectable radiation dose levels (0.25–8.0 µSv)
ANSI N43.17 compliance
Defined operator exclusion zone (3' × 6')
Optional privacy masking for PREA compliance
Optional thermal screening for health protection
Randomized zero-dose scan capability

INTERCEPT SPECIFICATIONS

Click to expand technical details

PHYSICAL

Footprint: 34" x 72" (86 x 183 cm)

Height: 90" (211 cm) fully assembled | 79" (201 cm) top removed for transport

Weight: 720 lbs (328 kg)

ELECTRICAL

Power: 100/120/230 VAC, 50/60 Hz, 800 watt

Tolerant of poorly regulated power.

ENVIRONMENTAL

Operating: 32-120 degrees F (0-50 degrees C)

Humidity: Less than 95%, noncondensing

RADIATION SAFETY

Dose: General-use 0.25 uSv (25 uRem) per scan, suitable for daily screening. Limited-use: up to 8.0 uSv (800 uRem) per scan, suitable for weekly screening.

Leakage: Inspection zone is the scanner footprint; less than 20 uGy (2 mR) in any 1 hour.

Standards: Complies with ANSI/HPS N43-17-2009 (Body Scanner Radiation Safety) and ANSI/IEEE N42.47-2010 (Body Scanner Image Quality).

PATENTS

Intercept is protected under U.S. patents: 10,481,295; 10,705,244; 10,705,245. International and other U.S. patents are pending.

Frequently Asked Questions

Click any question below to expand the answer

What can Intercept detect?

Intercept detects concealed weapons, drugs, cell phones, and other metallic and non-metallic contraband, including items concealed internally or externally.

How long does a scan take?

A complete body scan takes as little as 3.8 seconds.

Is the radiation safe?

Intercept operates under ANSI/HPS N43.17 standards and is classified as a Class A Full-Body Scanner capable of operating as a Category 1 General Use System or Category 2 Limited Use System.

Can Intercept detect internally concealed contraband?

Yes. Intercept detects metallic and non-metallic contraband, including organic and inorganic materials concealed internally or externally.

How much space does Intercept require?

Its compact footprint measures only 3 feet by 6 feet and fits through a standard doorway.

How quickly can it be installed?

Installation can be completed in approximately two hours.

What training is included?

ARRT-certified instructor-led training provides hands-on education covering radiation safety, system operation, workflow, contraband detection techniques, scan interpretation, guided image review, and operator certification.

Does x-ray body scanners require extensive operator training?

The Intercept features an intuitive software interface designed to help operators efficiently and effectively review images. New operators are trained in under three-hours in our in-person training taught by Tek84’s ARRT-certified instructors.

Why is vertical scanning important?

Intercept's patented vertical scanning technology minimizes image distortion by imaging subjects across the body's shortest path, producing clearer images that support more confident threat detection.

What types of correctional facilities use x-ray body scanners?

Body scanners are utilized across all levels of high-security facilities, including local jails, county detention centers, state prisons, and federal correctional institutions.

Why Choose Tek84?

Tek84 delivers innovative security solutions that combine performance, efficiency, and reliability. Defender brings advanced screening capabilities to public settings where security is essential, helping facilities strengthen threat detection while accommodating the demands of busy entry points.

Ready to enhance your facility’s security screening capabilities?

Request a Demo Speak with a Specialist Download the Brochure
