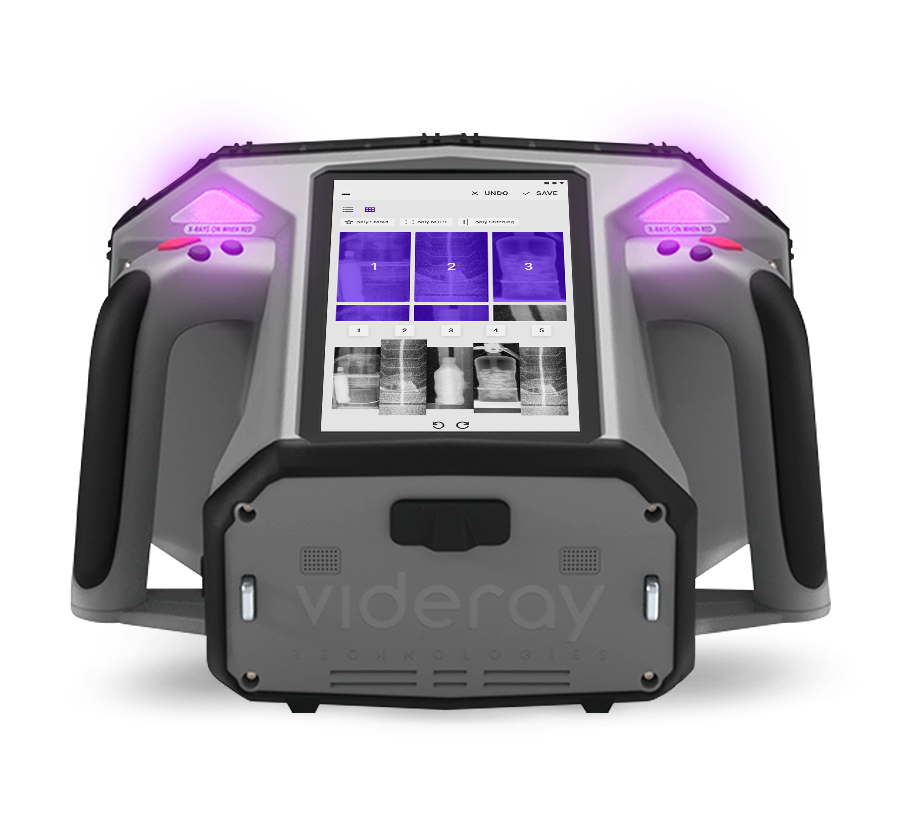

PX1
MORE POWER, HIGHER ENERGY

The first generation of true inspection technology

DOWNLOAD BROCHURE CONTACT US SPECS FAQS

FRONTLINE DEFENSE AT YOUR FINGERTIPS

Threats to security demand swift and efficient detection methods. Criminals and bad actors constantly evolve, concealing contraband in vehicles, cargo, and structures. The Videray PX Series handheld X-ray imagers deliver the speed, power, and portability necessary to identify threats quickly and effectively.

Designed for rapid deployment where operators only have access to one side, the PX1 allows security professionals to detect organic and inorganic anomalies quickly with high-quality imaging and material penetration.

Industry-leading image quality
Superior material penetration
Rapid backscatter imaging
Compact and lightweight build

Unmatched operator safety
Intuitive touch interface
Modular transmission options

Infinity Detector

700-nit Bright HD Display

Active-Passive Cooling System

Low radiation leakage

Tamper Evident Encrypted Database

64GB Internal Storage

Ergonomic Operation

Camera, dual flashlights & dual vertical line laser

Battery Compartment for easy access

Charger Port

UNMATCHED
POWER

Industry-leading image quality and material penetration allow operators to see through dense layers and spot hidden contraband.

ULTIMATE
PORTABILITY

Lightweight and compact design lets operators easily carry the device and inspect hard-to-reach areas.

EASE OF
USE

Runs on intuitive software designed for quick operation, avoiding complex manuals and speeding up inspections.

PROVEN
RELIABILITY

Over 1,000 units deployed globally across federal, state, and local law enforcement agencies in more than 90 countries.

BACKSCATTER & TRANSMISSION TECHNOLOGY

PX1 is ideal for quickly scanning large areas or objects where you only have access to one side. Operators can quickly detect organic-based anomalies such as drugs, liquids, cash, explosives, and hidden weapons.

When wirelessly paired with Modular Transmission Panel (MTP) detectors, operators capture both backscatter and transmission X-ray images simultaneously in a single scan—allowing you to see through even higher-density materials and resolve fine metallic details.

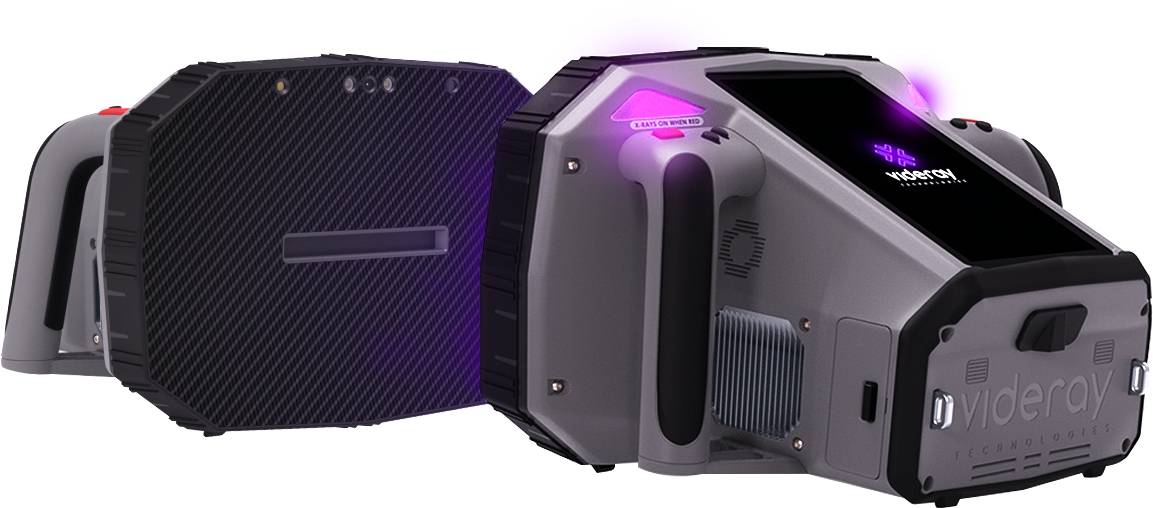

PX1 HANDHELD SPECIFICATIONS

Click to expand technical details

SCANNER DIMENSIONS & WEIGHT

Length: 19.2 cm (7.6 in)
Width: 44.5 cm (17.5 in)
Height: 26.9 cm (10.6 in)
Weight: 5.2 kg (11.5 lbs)

TECHNICAL OVERVIEW

Exposure time range: 0.5-2.0 sec
Focal spot: 0.75mm
X-ray beam: 30deg FOV cone
Maximum duty cycle: 180 scans per hour in handheld use at full power
Tube Voltage: 90-140kV
Tube Current: 5-70uA
Tube Power: 10W
Flexible image export options
Field of view alignment line lasers and camera live view

SYSTEM

Android 14 Operating System
USB-C, USB 3.0, Wi-Fi, GPS, and Bluetooth Connectivity
Multi-Language User Interface
5G Onboard Modem or 4G/5G Hotspot Compatibility
*Requires external cellular plan
Storage: 128GB, configurable up to 1TB

IMAGING & INSPECTION ADVANTAGES

Handheld
Wireless & Wired Image transfer
Integrated Active 7" 1200x1920 FHD 2500 nits, Color Touchscreen
Quick action buttons on handles
Save 25,000 - 200,000 images based on storage configuration
Flexible image export options
Field of view alignment line lasers and camera live view

OPERATING CONDITIONS

Ingress Protection: IP54
Operating Temperature: -4F (-20C) to 140F (60C)
Operating humidity: 0% to 95%
Storage Temperature: -40F (-40C) to 158F (70C)

BATTERIES

4-6 hours battery life | 1 battery bay
2 batteries included w/ every PX Unit
110/220V AC 1-Bay Rapid Charger

TRANSMISSIONS PANEL OPTIONS

MTP+ 14x17 in
MTP+ 10x13 in
See MTP+ Datasheet for more details

STANDARD ACCESSORIES

Two (2) rechargeable batteries
1-Bay rapid charger
Quick connect adjustable wrist & shoulder straps
USB-C Data transfer cable
Lockable transport case (IP67, MIL-SPEC, Airline carry-on)
Quick start guide & operators manual
Additional accessories available for purchase

TRANSPORT CASE OPTIONS

Lockable hard case with wheels (IP67, MIL-SPEC)

SAFETY

Revolutionary & patented built-in shielding
Visual indicator lights and interlocks to prevent inadvertent X-ray emission
Password required for operation
Configurable Single/Dual Trigger Modes
Front facing flashlights
Contains no live radiation source

COMPLIANCE

CE and RoHS compliant
UL Compliant
HPS Compliant
Compliant with all applicable U.S. Federal health and safety standards.
ANSI, ICRP, NCRP and Euratom radiation safety standards for annual dose for general public

SUPPORT

Complementary Over-the-Air (OTA) Software Updates
Complementary Email/Phone Support
Virtual and On-site Training available
Standard 1-year warranty included

Frequently Asked Questions

Click any question below to expand the answer

What can the PX1 Handheld detect?

The PX1 detects organic and inorganic anomalies, including hidden narcotics, currency, liquids, explosives, weapons, and undeclared contraband behind single-side barriers.

Is the PX1 safe to operate?

Yes. All Videray devices are engineered with operator safety as a priority, complying with all relevant radiation safety standards when operated according to manufacturer instructions.

How does backscatter differ from transmission imaging?

Backscatter imaging allows scanning when you only have access to one side of an object. Pairing with wireless Modular Transmission Panels (MTP) combines both methods for maximum penetration and high-resolution metallic detection.

How quickly can the unit be deployed in the field?

The PX1 powers up and is ready for deployment anywhere in seconds, making it ideal for fast-paced traffic stops, building checks, and border checkpoints.

What training is provided with the PX1?

Videray systems include complimentary virtual training and support, with optional in-person field and classroom training available.

BUILT FOR YOUR MISSION, SO YOU CAN STAY ONE STEP AHEAD

Since 2019, over 1,000 units have been successfully deployed to elite federal, state, and local law enforcement agencies across more than 90 countries, directly assisting in major drug and currency seizures.

PX1 MORE POWER, HIGHER ENERGY
